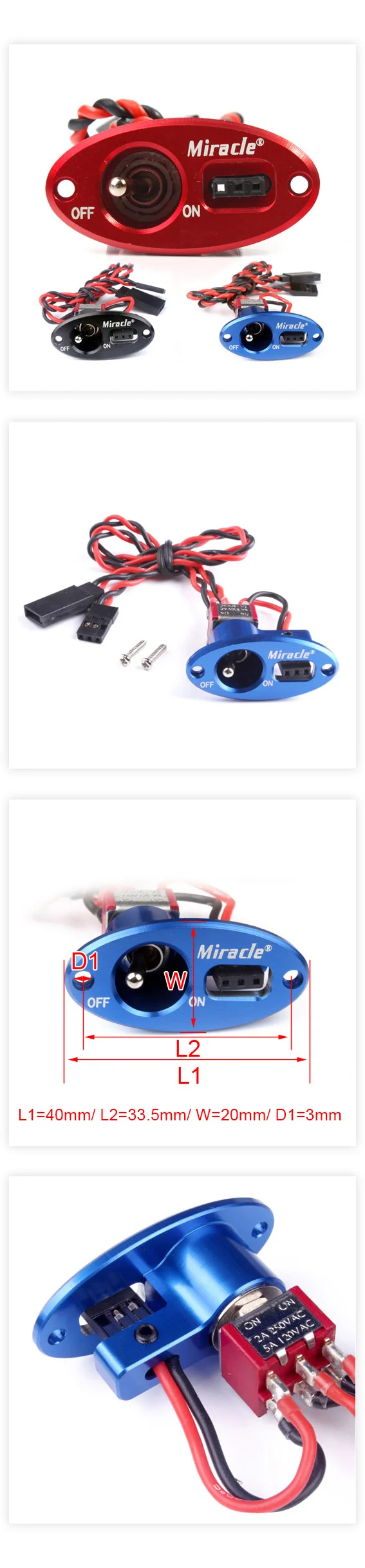

Mounting Size:

²  L1=40mm

²  L2=33.5mm

²  W=20mm

²  D1=3mm

Note:  There is 1-2mm slight error for the manual measurement.

Specifications:

²  Outside Diameter:  1.6mm/ 60core (tinning wire/ core wire)

²  Wire Outside Diameter: 0.08mm (#22AWG wire)

²  22# silicone wire, gold-plating plug

²  Switch:  2A/250V AC, max 20A DC for 10min

²  Available Colors:  blue, black, red

²  Very light (23g), can be used for small to large airplane

Features:

²  One Switch:  either for connecting and disconnecting the receiver circuit, either for connecting and disconnecting the CDI circuit.

²  One plug compatible with JR and FUTABA: either for connecting with the receiver battery, either for connecting with the CDI battery to supply power without opening the canopy.

Application Fields:

Suitable for gasoline airplanes, nitro airplanes and model boats
