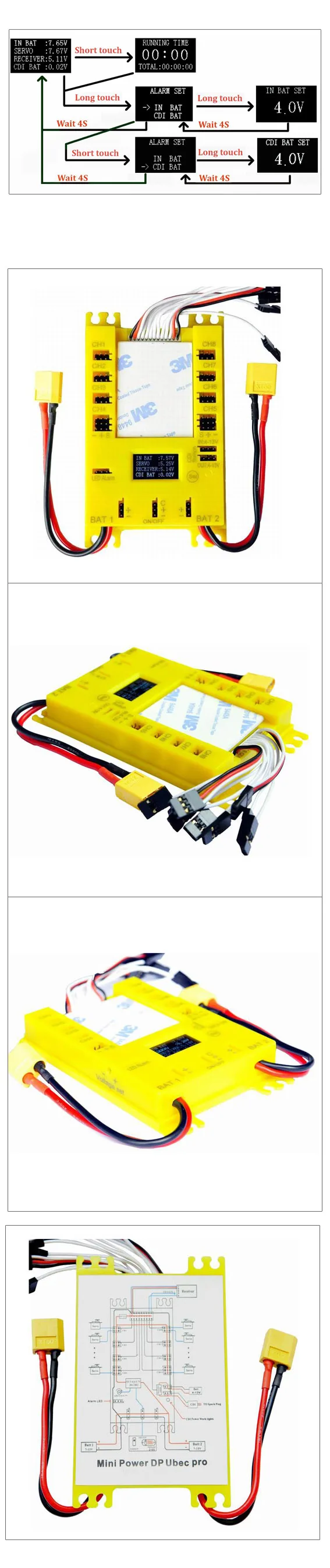

NEW Features for Servo Distribution Board:

1. with LED Screen

2. Voltage Alarm

3. Flight Time Calculation

Features:

l  Dual power inputs effectively improve supply reliability.

l  Built-in electronic switch, compared with the conventional mechanical switch has higher security and stability.

l  HD OLED display real-time display battery voltage input, the receiver operating voltage, operating voltage servos, CDI supply battery voltage, a single flight time, total flight time and other information.

l  You can freely set the alarm input battery voltage, CDI-powered battery alarm voltage value (alarm value range: 4-12V, use the tips alarm buzzer and LED)

l  9-channel inputs, 16 servo output (1 of 2), Article 9 channel control CDI flameout switch

l  Built-CDI remote flameout switch, making flying safer

l  Built-20A UBEC (Max: 30A), providing ample work for the servo currents.

l  4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.

l  Independent 5V linear regulator which provide a separate pure working power supply to the receiver

l  Dedicated receiver placement, to avoid accidental bombing has resulted in damage to the receiver.

Technology Parameters:

l  Input Voltage: 7-13V

l  Output Voltage: 4.8-9 .7 V (factory voltage is 5.2V)

l  Output Current: 0-20A (Max: 30A)

l  Weight: 80g

l  Size: 122mm*72mm*18mm

l  Working Temperature: -20 to 85 Celsius degree

Application:

The product is mainly suitable for over 50CC gasoline airplane, especially for the airplane which each main wing has two independent ailerons.
